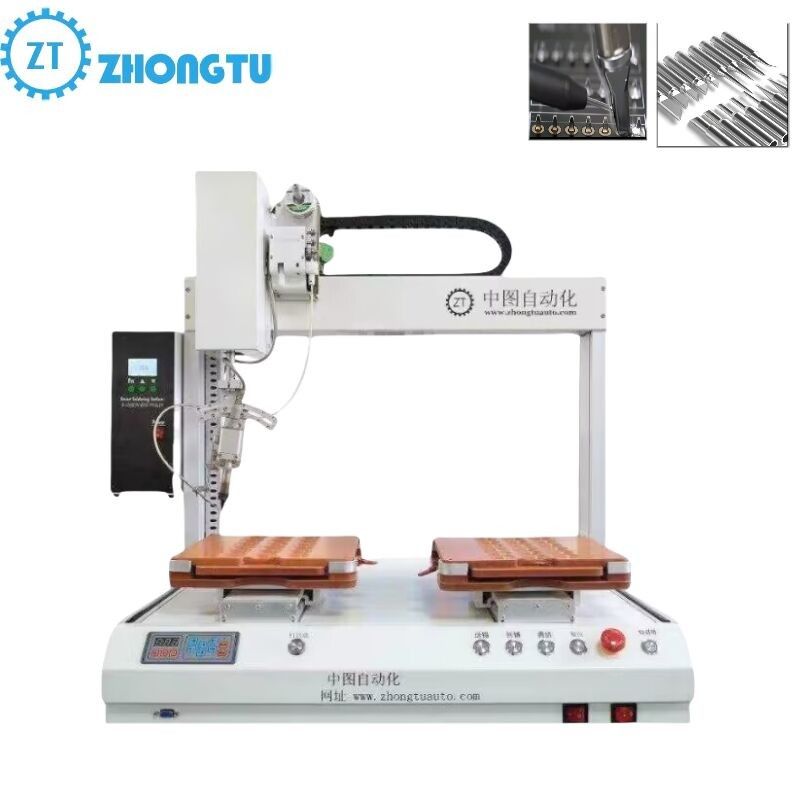

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering

Name: Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: Se trata de un sistema de control de las emisiones de gases de escape.
Price: 3,300.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: China.

Nombre de la marca: ZT

Certificación: CE, ISO, RoHS

Número de modelo: Se trata de un sistema de control de las emisiones de gases de escape.

Condiciones de pago y envío

Cantidad de orden mínima: 1 conjunto

Precio: USD 3100-3500/SET

Detalles de empaquetado: Caja de madera

Tiempo de entrega: 15-30 día

Condiciones de pago: T/T

Capacidad de la fuente: 100 unidades por mes

Consiga el mejor precio

Detalles del producto

Descripción del producto

Detalles del producto

Resaltar:

tensión:	CA 110 ~ 240 V	Las dimensiones:	35 x 25 x 15 cm
tipo:	Automático	Velocidad de soldadura:	1-2 segundos por punto de soldadura
Precisión de la repetibilidad:	± 0,02 mm	Eje:	4
El soldado Robert:	robot de soldadura para PCB	Especificación:	807885cm
El poder:	680w	Paquete de transporte:	Caja de madera
Tamaño de la estación de soldadura:	40 x 30 x 20 cm

tensión:	CA 110 ~ 240 V
Las dimensiones:	35 x 25 x 15 cm
tipo:	Automático
Velocidad de soldadura:	1-2 segundos por punto de soldadura
Precisión de la repetibilidad:	± 0,02 mm
Eje:	4
El soldado Robert:	robot de soldadura para PCB
Especificación:	807885cm
El poder:	680w
Paquete de transporte:	Caja de madera
Tamaño de la estación de soldadura:	40 x 30 x 20 cm

Descripción del producto

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering

The automatic soldering machine for PCB soldering can streamline the production process, which can enhance efficiency and boost precision. Different advanced technologies are used such as selective soldering and wave soldering to automate the application of solder on printed circuit boards.

Features: As the automatic machine is equipped with programmable settings, then it is possible for consistent solder joint quality while minimizing manual mistakes.
Benefits: This automatic soldering machine can significantly increase production speed and decrease labor costs, which can be ideal for high-volume manufacturing environments.
Types: Many different types are available, including reflow soldering machines for surface-mount components and wave soldering machines for through-hole components, which can be helpful for different applications.
Applications: The automatic soldering machine can be widely applied in electronics industry, assembly, toys, LED products, and consumer goods industry, the automatic soldering machines are quite important for ensuring reliable and durable electronic products.

Product Parameter

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering 0

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering 1

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering 2

Zhongtu Desktop Automatic Soldering Machine Equipment with Dual Stations for PCB Soldering 3

Our advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
